Greater embedding pressure can be achieved by Casing oscillator instead of Casing Drive Adapter, Casing can be embedded even in hard layer.
Casing oscillator owns such merits as strong adaptability to geology, high quality of completed pile, low noise, no mud contamination, slight influence to former foundation, easy control, low cost, etc. It owns advantages in following geological conditions: instable layer, underground slip layer, underground river, rock formation, old pile, erratic boulder, quicksand, foundation of emergency and temporary building.
It is especially suitable for coast, beach, old city wasteland, desert, mountain area and the place surrounded by buildings.

​​

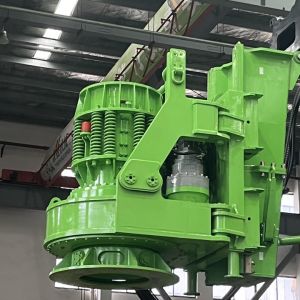

KRT150 Casing Oscillator Technical Specification
Casing diameter	mm	600/800/1000/1200/1500
Max. Operating pressure	Mpa	28
Max.torque	KN.m	1500
Rotation angle	o	±10o
Stroke	mm	450
Max. lifting force	KN	2050
Height of Mainframe	mm	650
Overall weight	Kg	19000
Mainframe pressure	KN	1050
Balance weight pressure	KN	900
Clamping force(clamp)	KN	2200
Clamping force(sub clamp)	KN	280
Width of connection box	mm	560
Width of tail	mm	1600
Width of base frame	mm	2720
Overall length	mm	4285
Height of tail	mm	1170
Height of connection box	mm	580
Connection box pin shaft stroke	mm	60
Height of jaw	mm	630
Height of mechanical fixture	mm	1150
Overall Height	mm	1780

​

​​​​​

​

Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is 1 year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.

TYSIM PILING EQUIPMENT CO., LTD is a leading enterprise specialized in the R&D and manufacturing of small and medium sized compact rotary drilling rigs. TYSIM is also a member of the management committee of the Association of the National Foundation Industry within the Association of the National Construction Machinery Industry. TYSIM, a National high-tech enterprise, has passed ISO9001 quality management system certification and JiangSu Province privately owned high-tech enterprise certification. The whole series of products have passed CE certification. It has registered more than 40 patents designs.

TYSIM includes small sized rotary drilling rigs, modular drilling rigs, Caterpillar chassis series medium sized rotary drilling rigs, hydraulic pile breakers, and other related products. The small rotary drilling rigs of TYSIM KR series and KP series of hydraulic pile breakers are now one of the professional brands in the piling industry. Four years in a row, TYSIM was recognized by the China Road Machinery Net as the top ten brands to receive users attention. In 2019, it was rated as one of the top 50 professional manufacturers of construction machinery by China construction machinery industry association.

After close to 10 years of focusing on rotary drilling rigs, TYSIM has developed a full range of small and medium sized rotary drilling rigs comprising the KR series:  KR50, KR80, KR90, KR125, KR150, KR220C, KR285C,KR300,KR360; the M series multi-functional drilling rigs KR80M, 90M, KR125M, KR220M with long auger CFA Function, and the low height KR125ES and KR300ES rotary drilling rigs.

TYSIM drilling rigs is not only suitable for various civil urbanization construction projects, but also suitable for subway, viaduct and redevelopment of old estate projects. Featuring high efficiency and reliable performance, the KR series of small drilling rigs have gained excellent recognitions in both at home and abroad. TYSIM 's products have been exported in batches to Australia, Singapore, Russia, Thailand, Argentina, Vietnam, Indonesia, Philippines, Qatar, Zambia and more than 40 countries. In tandem with the advancement of the Chinese construction industry to the next higher level, TYSIM drilling rigs will become the optimal machinery for the urbanization infrastructure and redevelopmrnt constructions.

The KP series of hydraulic pile breakers (also known as concrete pile cutter) originated by TYSIM have solved the pile cutting issues in the most effective way. It has enabled rapidly cutting of piles in a much shorter time which has changed the traditional manual cutting method in China. TYSIM KP series of hydraulic pile breakers have won 11 core patents, including one patent for invention in China. At present, TYSIM pile breakers have been exported to America, England, Brazil, Australia, Vietnam, Indonesia, Sri Lanka and other 40 countries.

.

Under the leadership of the founder Mr. Xin (Peng), a committee member of the National Foundation Construction Machinery Committee within the National Standardization Committee, TYSIM has put in place a team of dedicated professionals with solid experience specialized in pilling industry. They have built a cohesive team with broad international vision and rich product experience. Adhering to the core concept of “Value Creation Focus” and instilling the principle of “focusing on details and continuous improvement”, to devote to the R&D and manufacturing of the small and medium sized rotary drilling rigs, TYSIM has upheld and further strengthened its leading position in technical expertise and market shares to promote the upgrading of drilling equipment of the domestic foundation industry. In time to come, TYSIM will become a top tier brand name in the domestic market as well as the international market.
